Máy đo sáng Sekonic C-7000 SpectroMaster

 SEKONIC ENTERS INDUSTRIAL LIGHTING MARKET WITH

NEW SPECTROMASTER C-7000

SPECTROMASTER C-7000 là một thiết bị phổ dụng cầm tay cầm tay được thiết kế đặc biệt cho mục đích sử dụng trong công nghiệp.

Sử dụng thiết kế cảm biến hình ảnh tuyến tính CMOS của Sekonic và màn hình màu cảm ứng lớn, C-7000 có thể đo và mô tả chính xác đèn LED, HMI, đèn huỳnh quang cũng như ánh sáng tự nhiên và đèn flash điện tử.

Phần mềm Tiện ích của C-7000 (chỉ có phiên bản Windows) hiển thị dữ liệu đã ghi nhớ theo nhiều cách và xuất dữ liệu quang phổ theo bước tăng 1nm (nanomet) ở định dạng CSV.


Tokyo, Japan – November 5, 2015 – Sekonic Corporation, Industrial Light

Measurement Division, announced the release of the NEW SpectroMaster

C-7000 spectrometer designed for industrial applications. The

SPECTROMASTER C-7000 is the first industrial meter from Sekonic to lead

the way into the diverse and expanding lighting industrial industry. Offering

unique and advanced color measurement and analyzing features, the

SPECTROMASTER C-7000 is a competitively priced and sophisticated

solution for a vast number of lighting and color-conscious industries.

With the increasing use of advanced LEDs, and Organic

Electroluminescence lamps, the need to understand, manage and control

these sophisticated systems has never been more important. Responding

to this growing need, SEKONIC created the C-7000, a handheld, standalone

spectrometer. Incorporating a CMOS linear image sensor, it is

designed to measure every light source including LED, HMI, Fluorescent,

Tungsten as well as Natural light. In addition, it uses a sophisticated

accumulation type sensor (first utilized in the C-700 SpectroMaster series),

to give it the unique ability to also measure electronic flash.

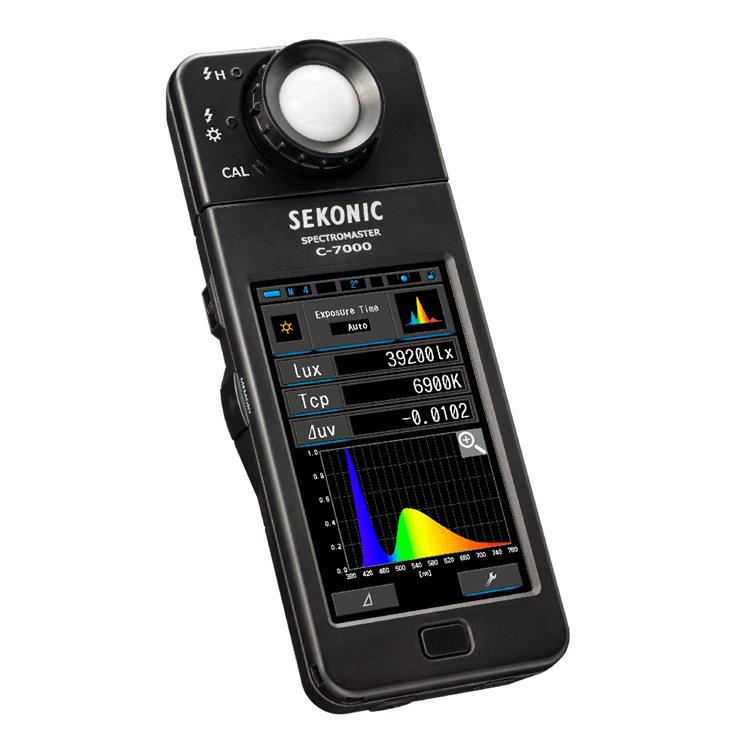

Similar to the Sekonic C-700 series Photo/Cine spectrometers, the C-7000

offers an intuitive 4.3” color touch screen display which provides easy

navigation through the various display screens. Informational display

screens such as Correlated Color Temperature, Illuminance, Color Rending

Index (CRI), Tristimulus Value, Chromaticity Coordinates (for

CIE1931/CIE1964 & CIE1976 standards), Peak Wavelength, Excitation Purity and Photosynthetic

Photon Flux Density and more are at your fingertips. Enhanced measurement data and display modes

of the C-7000 provide the information that is widely utilized in light manufacturing and quality control, as

well as monitoring illumination of offices, roadways, and public facilities to meet government lighting

standards. Indoor agricultural lighting, precision medical light control and many more lighting industries

will find the C-7000 of particular usefulness in their daily application to meet requirements for lighting

control.

Connecting the C-7000 to a Windows based PC enables users to make meter settings with the C-7000

Utility (included with the meter) and output CSV format files of measurement data in 1 nanometer (nm)

wavelength increments from 380 to 780 nm as well as graphs of spectral distribution, CRI, and

chromaticity diagrams for CIE 1931(1964) and CIE1976 color spaces.

During a recent interview, Mr. Lorenzo Gasperini (Industrial Sales & Marketing Manager) stated that

“SEKONIC is a well-respected and popular brand in the photo/video industry and now it can offer its

expertise and experience in light measuring instruments to a wider and much deeper market. These are

exciting times for SEKONIC as we expand our market and learn more on how we can integrate our

technology further.”

Key Features:

 Measures LED, HMI, Fluorescent, Tungsten, Natural Light and Flash in 1 nanometer

(nm) output wave length increments from 380 to 780 nm

 The world’s first*1stand-alone spectrometer that measure the flash light with sync. cord

connection or cordless mode. The measurement range for flash light is from 20lx·s to

20,500lx·s

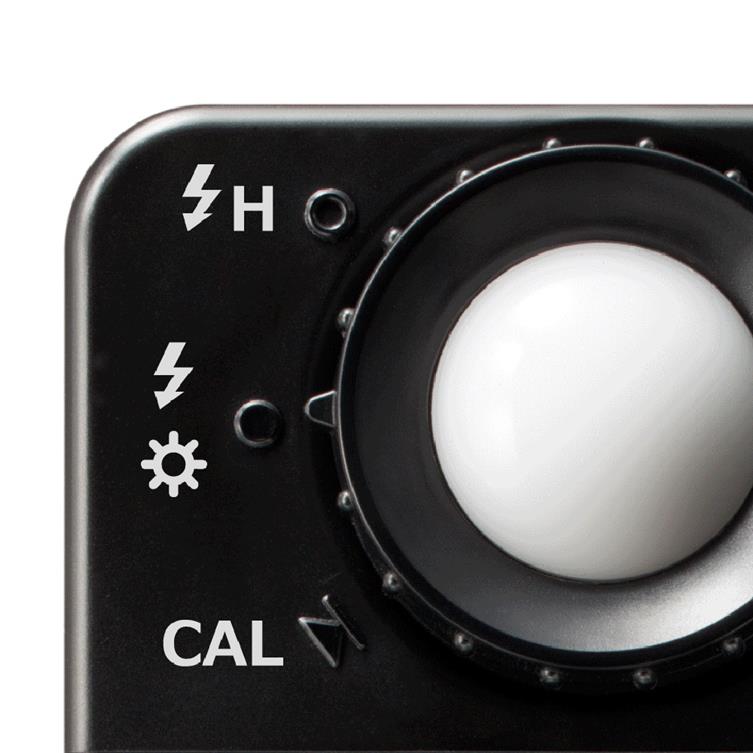

 User-friendly design: 270 degrees swivel head, dark calibration without cap, large

4.3”color touch panel LCD and Customize function

 Wide measurement range of Color Temperature (1,563 to 100,000K)and illumination

(1 to 200,000lx in ambient light, 20 to 20,500lx·s in flash light)

 Various displays (Text, Spectrum Graph, Spectrum Comparison Mode, CRI Mode,

CIE1931 (CIE1964) Mode, CIE1931 (CIE1964) Comparison Mode, CIE1976 Mode,

CIE1976 Comparison Mode).

 Measurements of Kelvin (K), lluminance (lux), CRI (Ra, R1 thru. R15),Deviation(⊿uv),

Tristimulus values(XYZ),Chromaticity Coordinate(xyz / u’v’), Dominant Wavelength(λd),

Peak Wavelength(λp), Excitation Purity(Pe), PPFD(Photosynthetic Photon Flux

Density).

 Up to 999 data measurements can be stored in memory. Memory function also enables

naming or renaming the title of memory and clearing the stored value. It is useful to

compare various light sources or to check deterioration of single sources over time.

 C-7000 Utility (in CD-ROM included in the package) offers easy settings and updating

firmware on Windows basis in the meter. Via C-7000 Utility software, the output of the

spectrum data at every 1nm in CSV format and the output of the spectrum distribution

graph, CIE1931 (1964), CIE1976 diagram, CRI graph bar in JPEG/BMP/PNG format

are also available.

*1 – As of August 2015, by research of Sekonic Corporation

Features and specifications are subject to change without notice
