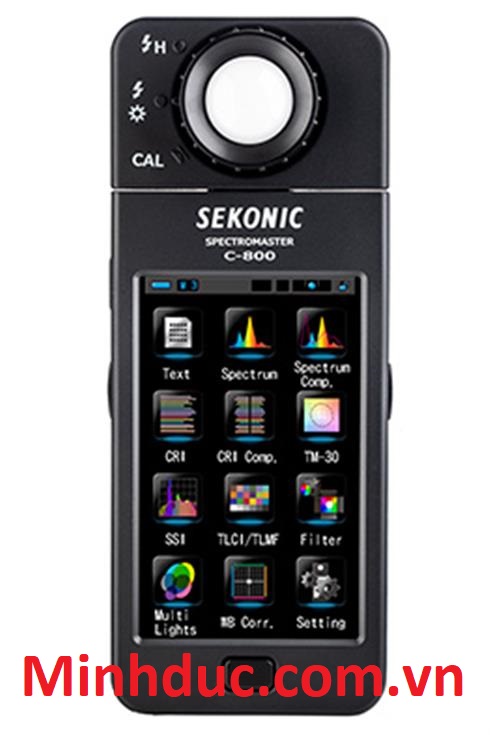

Máy đo sáng Sekonic C800

 Measures LED, HMI, fluorescent, tungsten, natural light and flash, from 380 to 780nmt

Different screen (text, graph spectrum, spectral comparison, CRI, CRI Compare, SSI, TLCI / TLMF, TM-30-15, filter light and LEE © © Rosco, Filter C amera for Kodak Wratten ©, LEE © and Fuji © Compares multiple lights, adjust the white balance)

Properties color output expansion

(CRI, SSI, TLCI, TLMF, TM-30-15)

 Measurements of Kelvin (K), brightness (lux / fc), Filter LB / CC (for the camera lens or filter light), Index LB / CC, CRI (Ra, R1 through R15) , ⊿uv, SSI, TLCI, TM -30-15 (Rf, Rg), CIE1931 (x, y), Hue, saturation

 Spectrophotometer and the luminance of the Sekonic C-800 - Specifications

Measured luminance classes: Compliance with the requirements for Type A of JIS C 1609-1: 2006 Meter lamp brightness Part 1: Instruments for measuring overall "

Sensor: Linear image sensor CMOS

Spectral wavelength range: 380nm to 780nm

Wavelength output wavelength: 1nm

Measuring range: Ambient light (1 200.000lx = 0.09 to 18,600fc)

Flashes (20 to 20.500lx)

Precision * 4, 5 (luminaires criteria: Brightness: ± 5% ± 1 (1 to 3000 lx), ± 1 digit ± 7.5MK (3,000 to 200,000 lx) of v

CCT is displayed : ± 4MK-1 (Lamps Standard A, 800 lx)

Repeatability (xy = Lamps Standard A: Brightness: 1% + 1 digit (30 to 200,000 lx), 5% + 1 digit (1 to 30 lx) values displayed

CCT: 2MK-1 (500 to 100,000 lx)

CCT: 4MK-1 (100 500 lx)

CCT: 8MK-1 (30 to 100 lx)

CCT: 17MK-1 (5 to 30 lx)

Spectral response characteristics relative visible region (f): Over 9%

Cosine response (f2): 6%

Temperature drift (ft): Brightness: ± 5% of the value displayed

CCT: ± 12MK-1 (brightness standard A, 1.000lx)

Humidity drift (fH): Brightness: ± 3% of the value displayed

CCT: ± 12MK-1 (brightness standard A, 1.000lx)

Energy sources: AA (1.5V) x 2 units, USB bus power

Measurement time: Environment Maximum: 15 seconds.

Ambient minimal: 0.5 seconds.

Flash: 1 to 1 / 500s (luxury 1/75, 1/80, 1/90, 1/100, 1/200, 1/400)

Measurement modes: Text mode, mode graph spectrum, regime comparable spectrum, mode CRI, Mode compare CRI, Mode TM-30, mode SSI mode TLCI / TLMF, filtering, mode more lights, white balance modes.

Other functions: Function, Auto Power Off, Auto dimming

Display language: English, Japanese, Chinese (simplified)

Display: USB 2.0

Operating temperature: -10 to 40 degrees. C

Storage temperature: -10 to 40 degrees. C

Size: 73W x 183h x 27d (body), 40d (parts photoreceptor) mm (2.9wx 7.2hx 1.1d, 1.6d inches)

Weight: 230g without battery

The control parameters extended color

(Hue / Saturation, 1931 CIE x, y color coordinates) .

 Up to 99 measurement data can be stored in memory .

 Wide measuring range of color temperature (1,600 to 40.000K) and illuminance

(1 200.000lx in ambient light, 20 to 20.500lx in flash light)

 Utilities Serial C-800 (download from www.sekonic.com) offers easy installation of the gauge and analyze data in the computer remembers r

 Designed with user-friendliness: First rotate 270 degrees, at no cap adjustment, color touch panel and 4.3 large 4.3 Custom function
